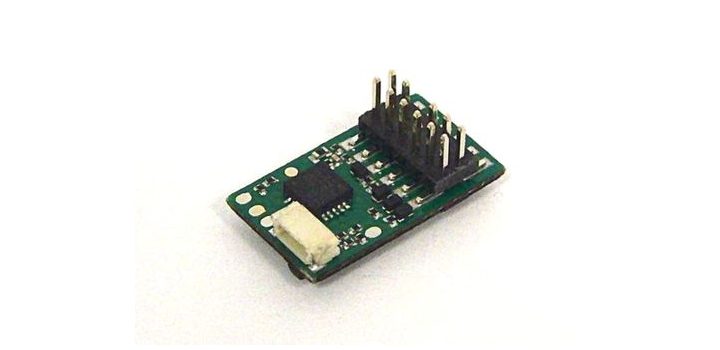

46401 Piko SmartDecoder 4.1 PluX12
The PIKO SmartDecoder 4.1 PluX12 is an universal digital decoder of the latest generation generation with multiple light outputs and a and a 0.8 A motor control.The PIKO SmartDecoder 4.1 masters the data formatsDCC with Rail-ComPlus?, Motorola?and Selectrix? and can also be used on analogue analog layouts. The decoder recognizes the respective operating mode automatically.
Features
- Fully automatic detection of the operating modes
- Operating modes DCC, MM, Selectrix?, DC and AC
- Motor current duration 0.8 A
- Motor peak current 2.0 A
- Total current function outputs 0.4 A
- 2 additional special function outputs
- MicroSUSI
- Programmable motor characteristic
- Brake distance modes
- Short circuit and over temperature protection
- dimensions: 15 x 8,6 x 3,9 mm
